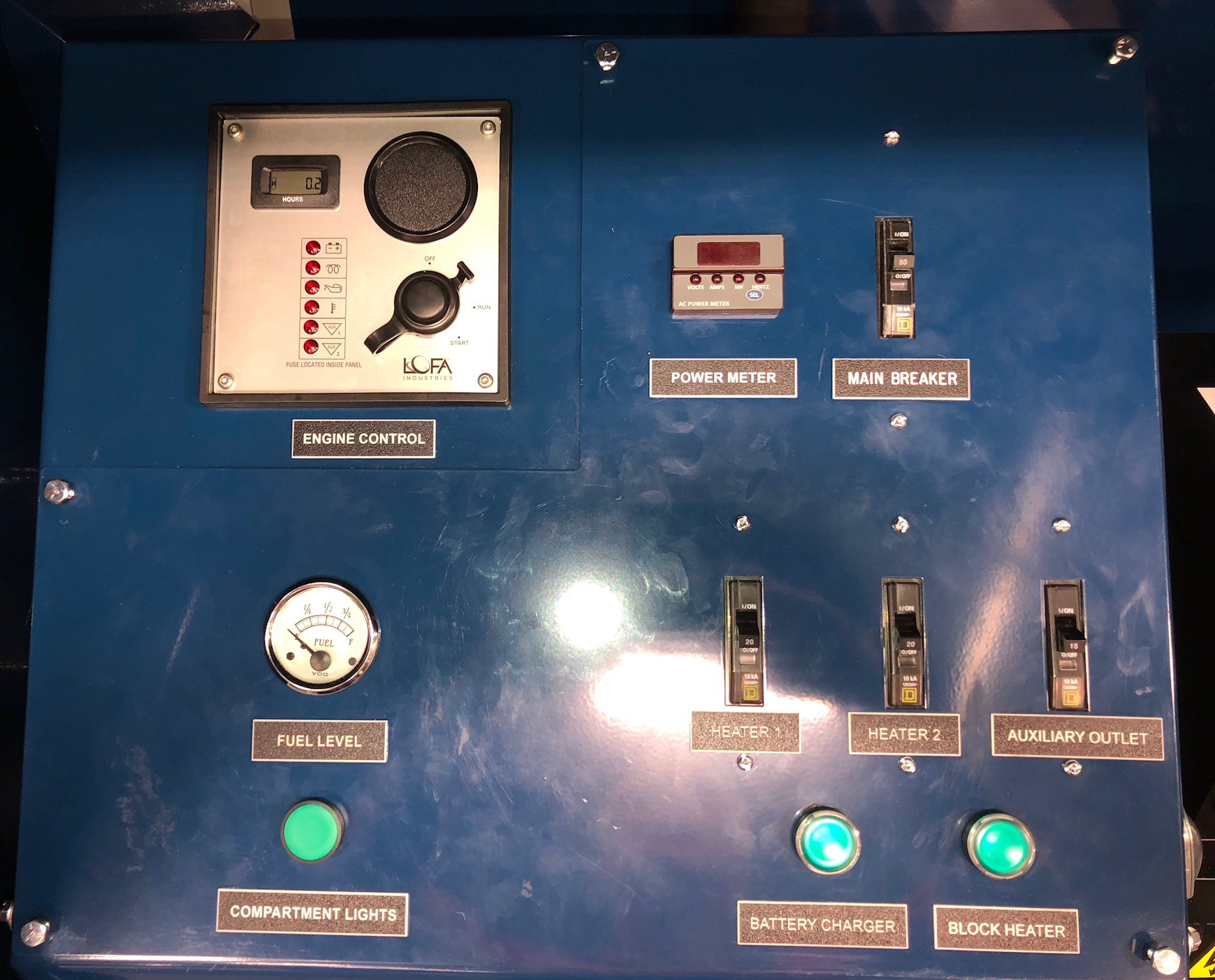

CONTROLS:
Internally Powered (12VDC)
Engine Key Switch - 'OFF', 'RUN', and 'START' positions - see Starting/Stopping the Diesel Engine sections
Compartment Light - Push to switch on lights for 3 minutes (or hold for 2 seconds, for 20 minutes of light)
Externally Powered (120VAC)
Battery Charger - Push to turn on the battery charger*. Pushbutton Light remains ON while charger is ON.
Block Heater - Push to turn on the block heater*. Pushbutton Light remains ON while heater is ON.
External Power Connection: 120VAC, 15A external power supply must be plugged into Trailer power receptacle, typically with an extension cord connected to a power grid-connected outlet.
INDICATORS:
Fuel Gauge: Indicates Fuel level only when the Engine key is in the Start or Run position
Power Meter: Press the 'SEL' button (bottom right corner) to cycle between Volts, Amps, Watts, Hertz
NOTE: Frequency may read 62 to 64 Hz during start-up, light loading, or other times.
