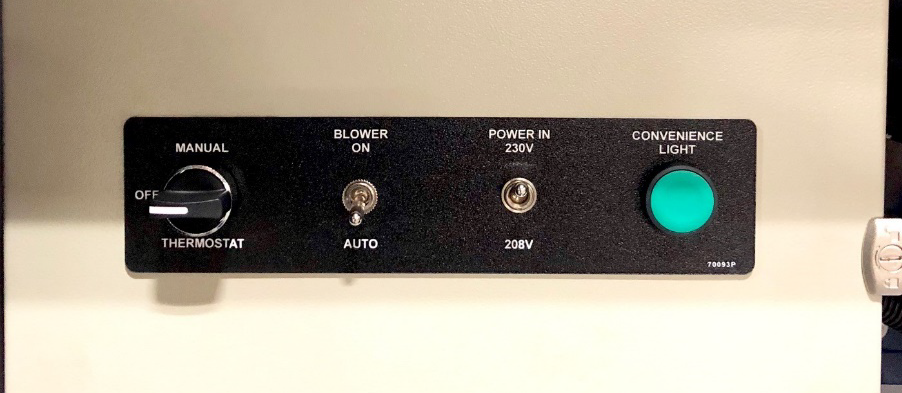

MAIN CONTROL PANEL
SYSTEM SWITCH
MANUAL Turns on heating system (burner) to operate continuously
OFF Heat system (burner) is off. Blower may continue to operate in cool-down sequence
THERMOSTAT Heating system (burner) is controlled by remote thermostat connected
BLOWER SWITCH
ON Main blower operates continuously (Ventilation Mode)
AUTO Main blower operates based on the heating cycles controlled by the PLC
POWER IN SELECTOR
208V Supplies optimum control voltage when incoming line voltage is 195VAC – 215VAC
230V Supplies optimum control voltage when incoming line voltage is 220VAC – 240VAC
CONVENIENCE LIGHT
MOMENTARY PUSHBUTTON Controls compartment convenience lighting.
TO ACTIVATE LIGHTING:
- Push once Lighting provided with 5 min. automatic shut off delay
- Push and hold for 5 seconds Lighting provided with 30 min. automatic shut off delay
- Push once, when light is on Turns lighting off at any time before delay has expired
